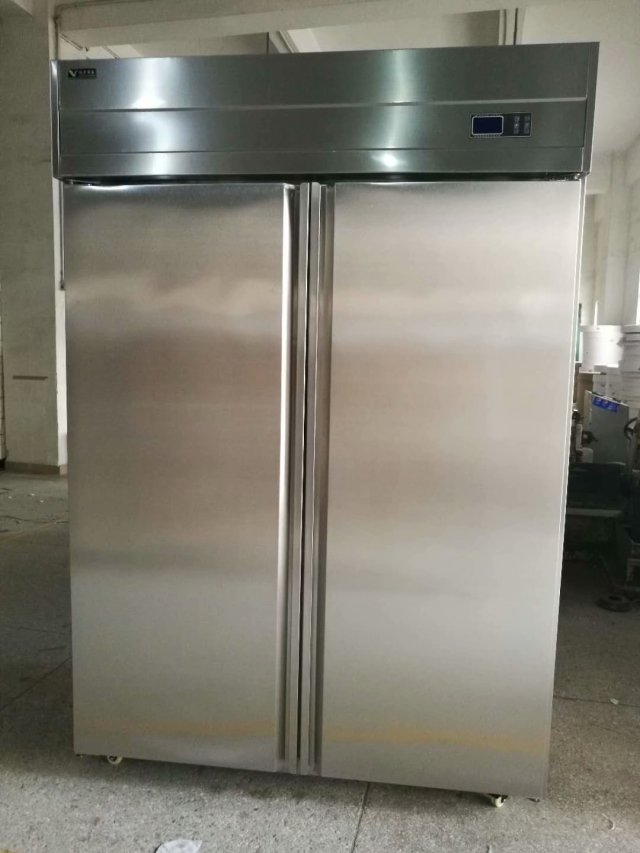

LTHY-1200HWS-L

Technical parameters of thermostatic storage cabinet:

Electrical pressure: AC220V 10% 50Hz

Peak power: 1650W average value: 200W

Chamber working environment temperature range: 0 ℃, 35 ℃

Humidity range of cabinet working environment: 0-80% RH

Cabinet integrated humidity control adjustable: 0% - 80%RH

Cabinet put oneself in another's comprehensive control temperature adjustable: 15 ℃ to 30 ℃

Humidity control range: 2%

Temperature control: + / - 1 ℃

Humidity fluctuation range: 6%

Temperature range: plus or minus 2 ℃

Temperature measurement precision error: plus or minus 0.5 ℃

Accuracy error of humidity measurement: 4.5%

Material: home appliance color steel plate, stainless steel

Door style: single door, double door USES large area aggrandizement glass, stainless steel door to wait

Laminate: 3 adjustable shelves, reasonable allocation of space inside the cabinet (note: the bottom partition is 80mm from the floor height, it is not suitable to directly place items at the bottom of the cabinet)

Foot wheel: four sets of casters

Desiccant: double system, can be recycled more than 100,000 times.

Cabinet structure:

1. The cabinet is filled with polyurethane high pressure foam between the shell and the inner tank for one-time forming, featuring temperature resistance, thermal insulation and flame retardant; The cabinet door frame adopts permanent magnet sealing rubber belt;

2. Display control module: original digital sensor sht10 data collection, temperature control measurement accurate, strong anti-interference ability;

3. Blue screen white LCD or touch screen display, MPU intelligent or PLC program control. The computer will store the memory and will not lose the setting parameters after suspension to ensure that the device will automatically return to normal operation after restart. The function key on the control panel can set the temperature parameters at will.

Humidity control mode:

1. Dehumidification system: litaihong patent (desiccant dehumidification) dehumidification and regeneration four systems alternately execute drying gas internal and external circulation mode to ensure a constant drying degree in the box;

Dehumidification system is the core system of the constant temperature and humidity storage cabinet. It adopts the exclusive technology of litaihong industry, which has a national invention technology and a number of new structure technology patents. Includes dehumidification system, dehumidification system, regeneration system, regeneration system; Under the unified command of the microcomputer control system, the dry air is continuously injected into the box to ensure that the internal environment of the box is controlled within the requirements set by the customer.

2. Humidification system: brand ultrasonic humidifier.

Main accessories:

1. Cooling system:

Cold coal: R134A environmental protection type

Compressor: brand compressor

Electronic control system: litai hongye patent - computer intelligent single chip microcomputer or PLC control

Refrigerant, evaporator: aluminum tube brand - litaihong technology

2. Heating system:

Heating: PTC constant temperature semiconductor

Probe: imported original electronic probe SHT10, annual drift less than 3‰

3. Dehumidification system:

Litaihong patent (desiccant dehumidification) dehumidification - regeneration four systems alternately execute drying gas internal and external circulation mode to ensure a constant drying degree in the box.

Performance characteristics:

The equipment has a strong ability to control temperature and humidity. The relative humidity can be set at any time within the range of 30%RH to 60%RH, covering almost all precision accessories, all kinds of photoelectric instruments, instruments and optical instruments, photoelectric devices, microcomputer chips and other products requiring specific environmental temperature and humidity. In terms of the effect of accurate temperature and humidity control, it is the most widely used product in China. In addition, the temperature and humidity control cabinet has many unique performance characteristics:

1. High temperature heat source isolation type installation, will not cause harm to the surrounding objects or staff;

2. Microcomputer control automatically identify the humidity in the box, intelligent tracking of the humidity value set, the accuracy of the instrument level standards;

3. Blue and white LCD display, beautiful and high-grade vision, display clear and easy to read;

4. The working status of each system in the control cabinet can be clearly seen on the display screen, which is very convenient for the maintenance of the system.

5. Each system also sets the manual operation state, which is convenient for customers to deal with the moisture control mode flexibly;

6. The modular installation design of each system makes it easy to flexibly change the design according to the special requirements of customers, so as to achieve various special performance parameters of customers, and at the same time, it is also convenient for maintenance.

7. It has a great affinity for water molecules: dehumidifier material with strong chemical stability, high adsorption capacity and enough mechanical strength, has a high thermal stability, it can be repeatedly heated regeneration, regeneration times of more than 100,000 times;

8. The equipment has the functions of heat insulation, magnetic isolation, dustproof, small power in balance state, long life and so on, and has the features of environmental protection, energy saving and pollution-free.

9. Safe and reliable, low power consumption: the equipment is equipped with leakage protection and strong short circuit protection, safe and reliable use; Dehumidification, humidification, cooling, heating and other functions of visual display, once the power to meet the set requirements of humidity, temperature, the whole system will enter the micro-power maintenance area;

10. Strong applicability: the equipment can be used large space, according to the temperature and humidity requirements of stored items to adjust the setting value; The laminate inside cabinet body can be adjusted appropriately according to the size of storage. The equipment has strong versatility and practicability, and the control is convenient.

Size of constant temperature and humidity storage cabinet :(various sizes can be customized)
